Brand Name: | VWIN CERAMICS |
Model Number: | VRO918J312P |
MOQ: | 500 square meters |
Price: | $36.09/square meters 500-1299 square meters |
Packaging Details: | 1PCS/CARTON 36 CARTONS/PALLETS 45KG/CARTON |
Marble Effect Stair Step Tiles Hall Vitrified Design 3d Tiles Floor Tiles in Porcelain
Technical Standard

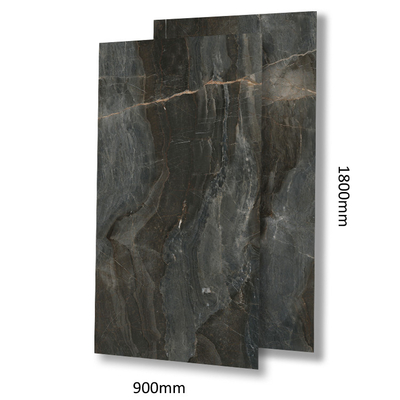

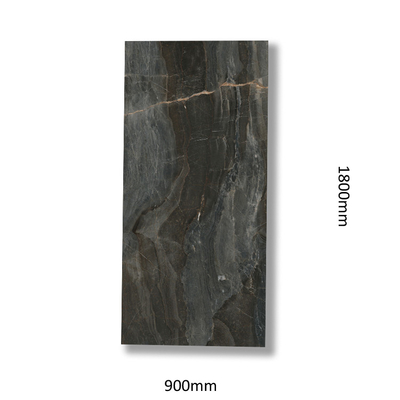

Full Body Marble Tiles(Size 900x1800x11mm) | |||
Test Item
| Standard | Test Result | |
1.Water Absorption | Average value | ≤0.2% | 0.04%-0.08% |
Individual value | ≤0.3% | ||
2.Breaking Strength | When the thickness≥7.5mm,the average value shall not be less than 1300N | 2993.4N | |
3.Rupture Modulus | Average value | ≥36MPa | 41.6MPa |
Individual value | ≥33MPa | 40.3-43.2MPa | |
4.Resistance to thermal shock | No crackle or crack after 10 times determinations of resistance to thermal shock | Conformed | |
5.Radionuclides | Internal exposure index | ≤1.0 | 0.6 |
External exposure index | ≤1.3 | 1.0 |

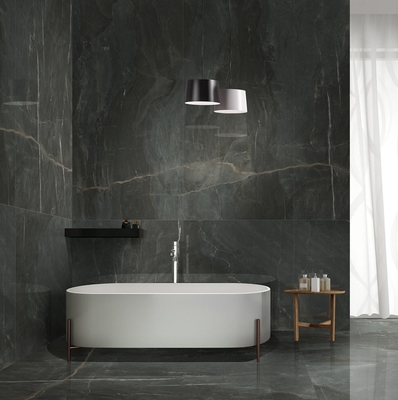

Sample Application
Packing Details of Porcelain Tiles
SPECIFICATION | PCS /CTN | SQM /CTN | SQM /PALLET | CTNS /PALLET | KG /CTN | KGS /PALLET | QUANTITY OF 20'FCL | PACK IN PALLET SIZE |
SIZE:600*1200 | 2 | 1.44 | 69.12 | 48 | 37 | 1776 | Different country can load different tons of container,please check that how many tons your country can accept.
Take the size 600x600mm for example:If the container can be load 28tons.That is 28000kg/32kgs per carton=875ctns=1260sqm | |
SIZE:600*600 | 4 | 1.44 | 57.6 | 40 | 32 | 1280 | ||
SIZE:800*800 | 3 | 1.92 | 53.76 | 28 | 48 | 1344 | ||
SIZE:300x600 | 8 | 1.44 | 69.12 | 48 | 30.5 | 1464 | 1100*1100mm | |
SIZE:450x900 | 3 | 1.215 | 58.32 | 48 | 35.5 | 1704 | (standard pallet) | |
SIZE:900x1800 | 1 | 1.62 | 58.32 | 36 | 45 | 1620 | ||
SIZE:750x1500 | 2 | 2.25 | 58.5 | 26 | 62 | 1612 | ||
SIZE:200x1200 | 5 | 1.2 | 57.6 | 48 | 25.5 | 1224 | ||
SIZE:150x900 | 9 | 1.215 | 58.32 | 48 | 28.5 | 1368 | ||
SIZE:150x800 | 10 | 1.2 | 79.2 | 66 | 24.5 | 1617 | ||
SIZE:200x1000 | 5 | 1 | 60 | 60 | 22.5 | 1350 | ||
SIZE:150x600 | 11 | 0.99 | 79.2 | 80 | 20 | 1600 |
Please CLICK HERE to Contact us for more information.
